Key Features
Precision Engineering
- CNC-machined 6063-T5 aluminum alloy
- ±0.1mm tolerance for seamless fabric tensioning
- Anti-corrosion anodized coating (IP65 weatherproof rating)
Smart Installation System
- Tool-free silicone edge grip technology
- 360° adjustable corner connectors
- Compatible with 0.18mm-10mm thickness flexible graphics
Customization Ready
- Modular design (4cm/6cm/8cm/10cm/12cm profile widths)
- Unlimited dimensional configurations
- Powder coating color matching service
Commercial-Grade Performance
- 2000N/m load capacity for large-format displays
- UL-certified flame retardant materials
- 15-year structural warranty

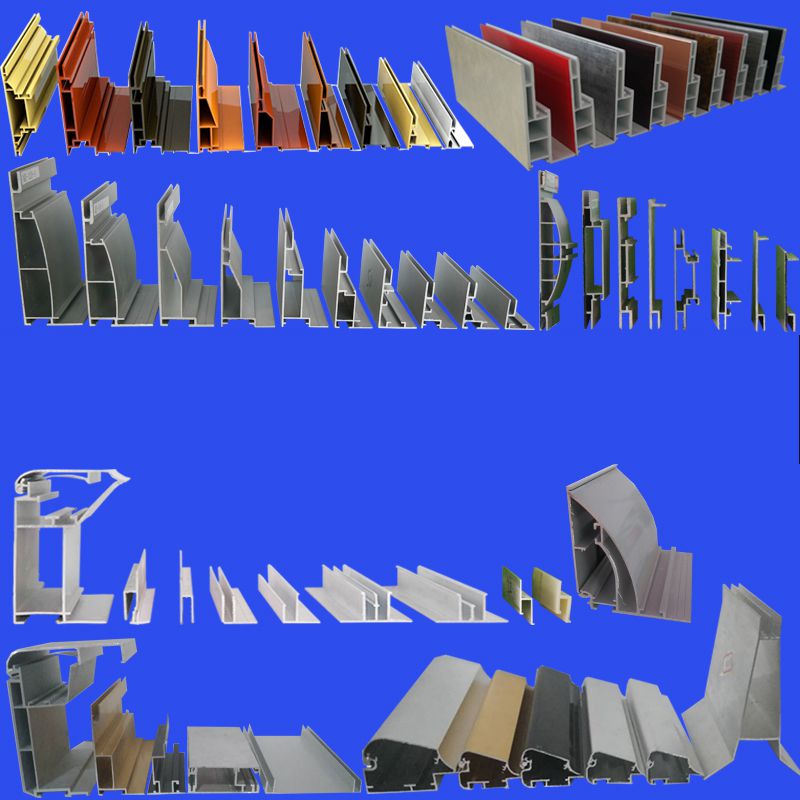

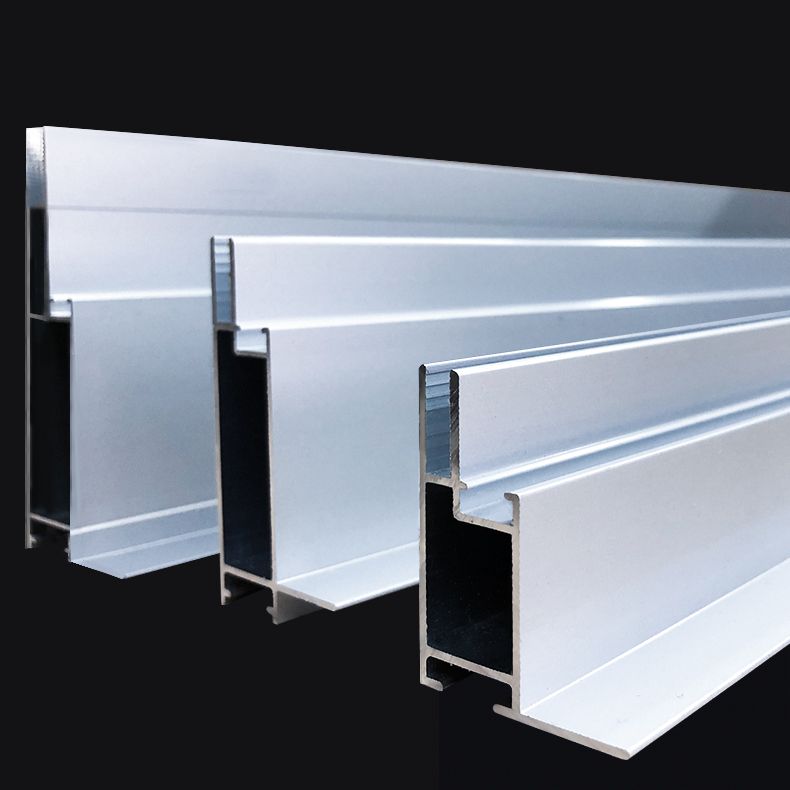

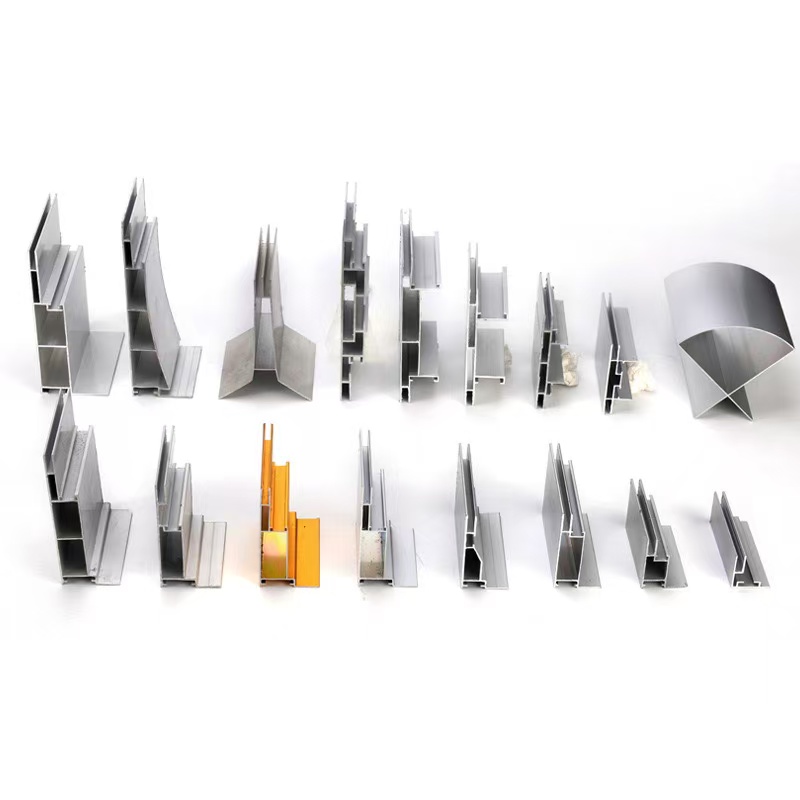

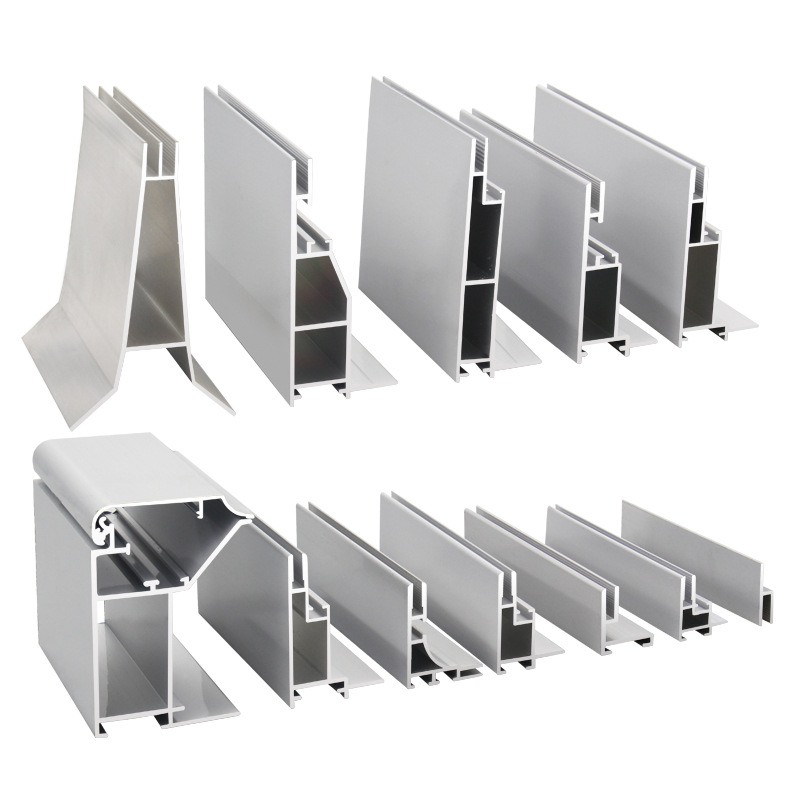

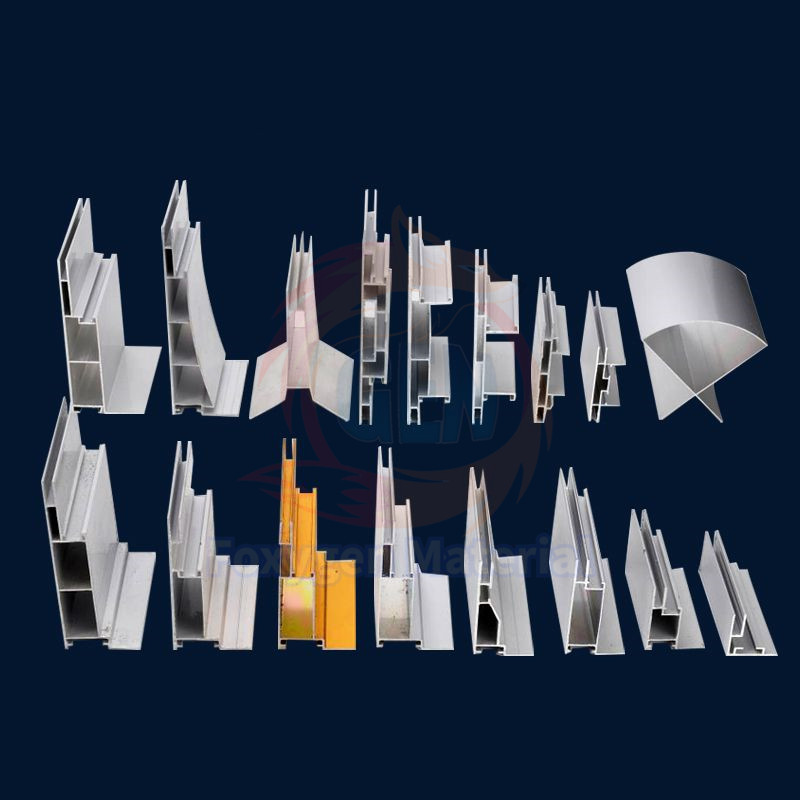

Technical Specifications
Parameter | Specification |
Material | Aerospace-grade 6063-T5 aluminum |
Profile Width | 2.5CM,3.5CM , 4.0CM, 5.0CM , 6.0CM, 8.0CM , 10.0CM , 12.0CM , 16.0CM , 20.0CM |
Type | H,F, W,single side , Double side |

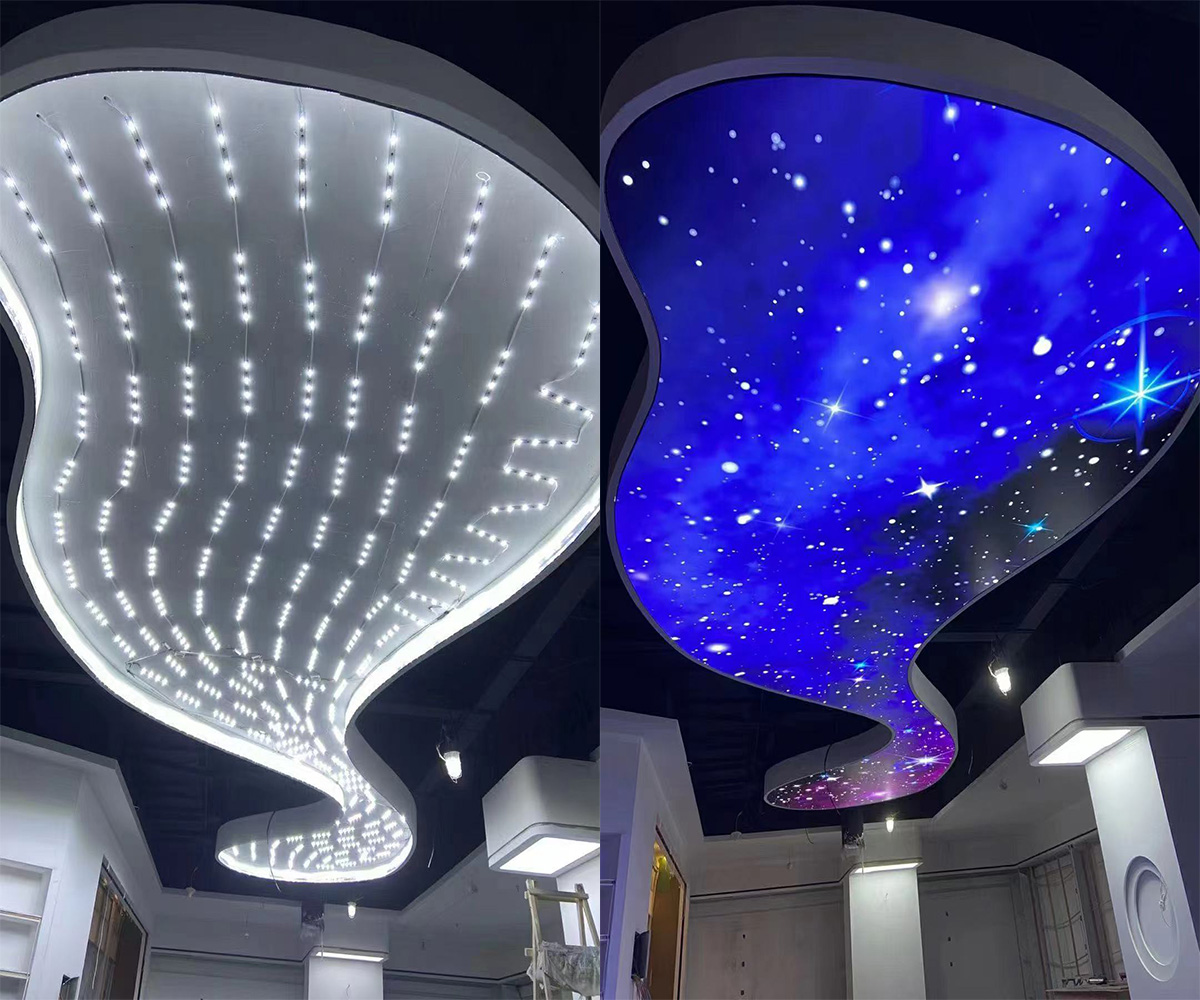

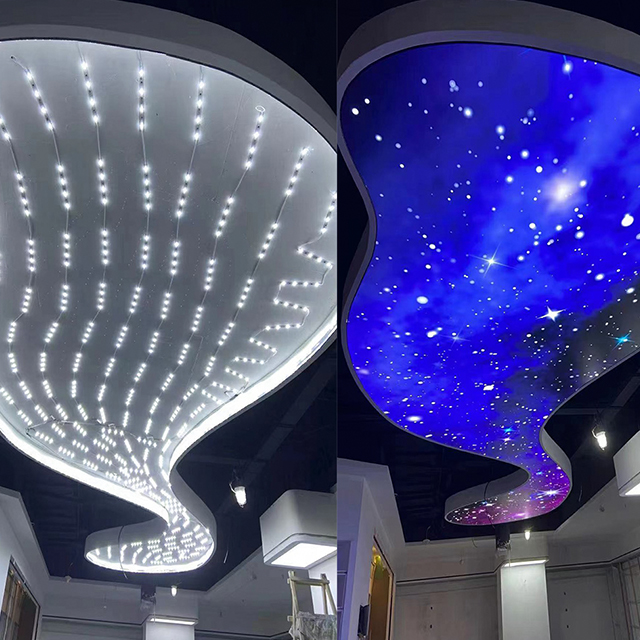

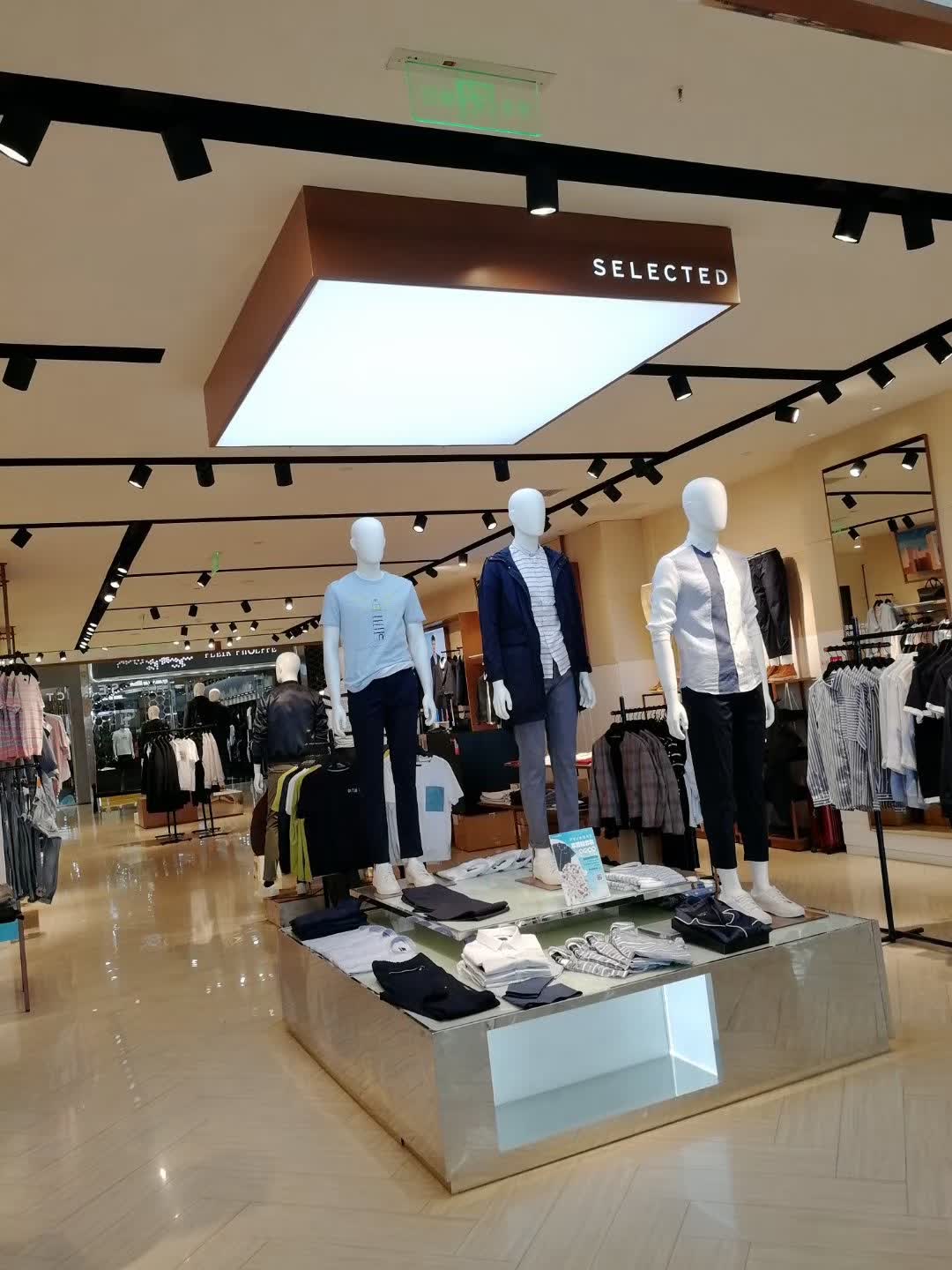

Application | Stretch ceilings， openable Advertising aluminum profile , Level A Glass Fiber fabric use openable Aluminum profile |
Thickness | 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm |
Length | 1.0M, 1.25M , 2.5M, 3.0M , 6.0M and we can also do the other custom size according to your requirement |
Weight Capacity | Up to 2000N/m linear load |
Surface Treatment | Matte black anodized (standard) |
Weather Resistance | IP65 waterproof rating |
Operating Temp | -40°C to +80°C |

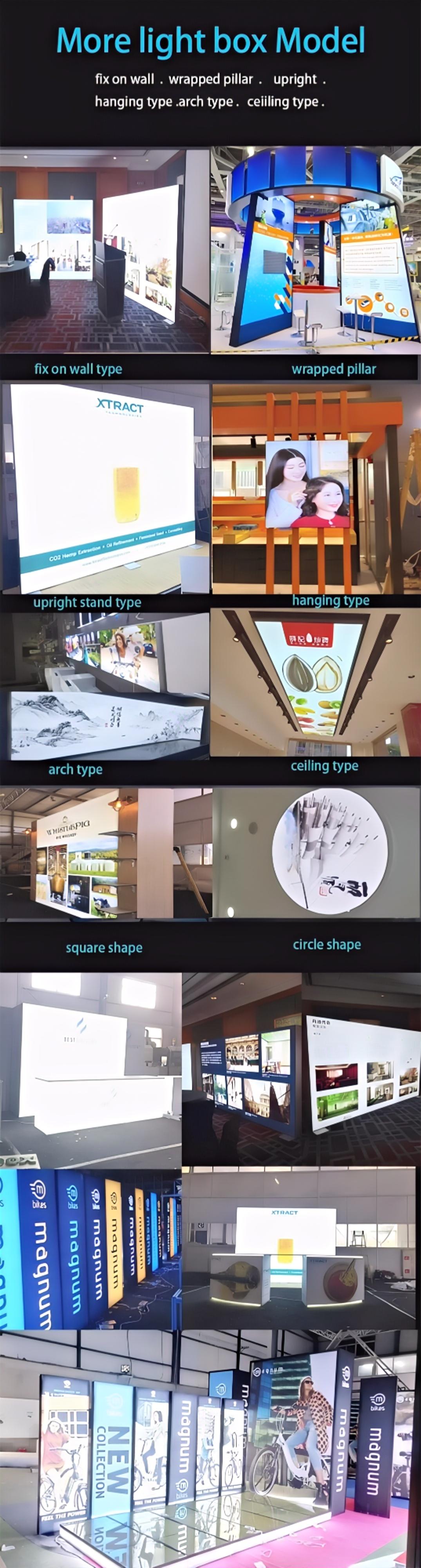

Applications

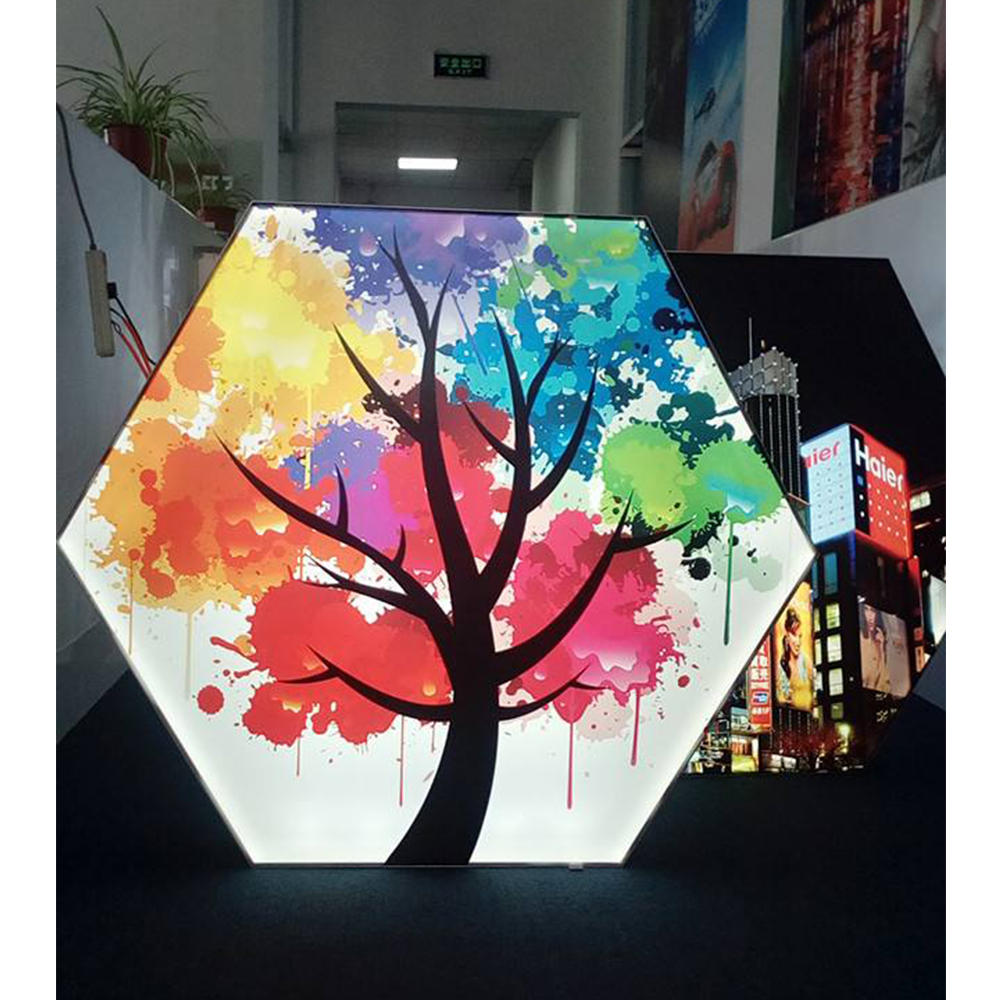

● Backlit storefront signage
● Digital printing light boxes
● Exhibition booth displays
● Transportation hub wayfinding systems
● LED-illuminated outdoor billboards
Why Choose Our SEG System?
1. Time Efficiency: 40% faster installation vs traditional framing
2. Cost Effective: Reusable frames reduce long-term expenses
3. Visual Perfection: Razor-sharp edges for wrinkle-free fabric
4. Scalable Solutions: From 0.5m² kiosks to 50m² façade displays
Package Includes
- Pre-cut aluminum profiles (specified length)
- Self-locking corner connectors (4x per frame)
- Silicone edge retention strips

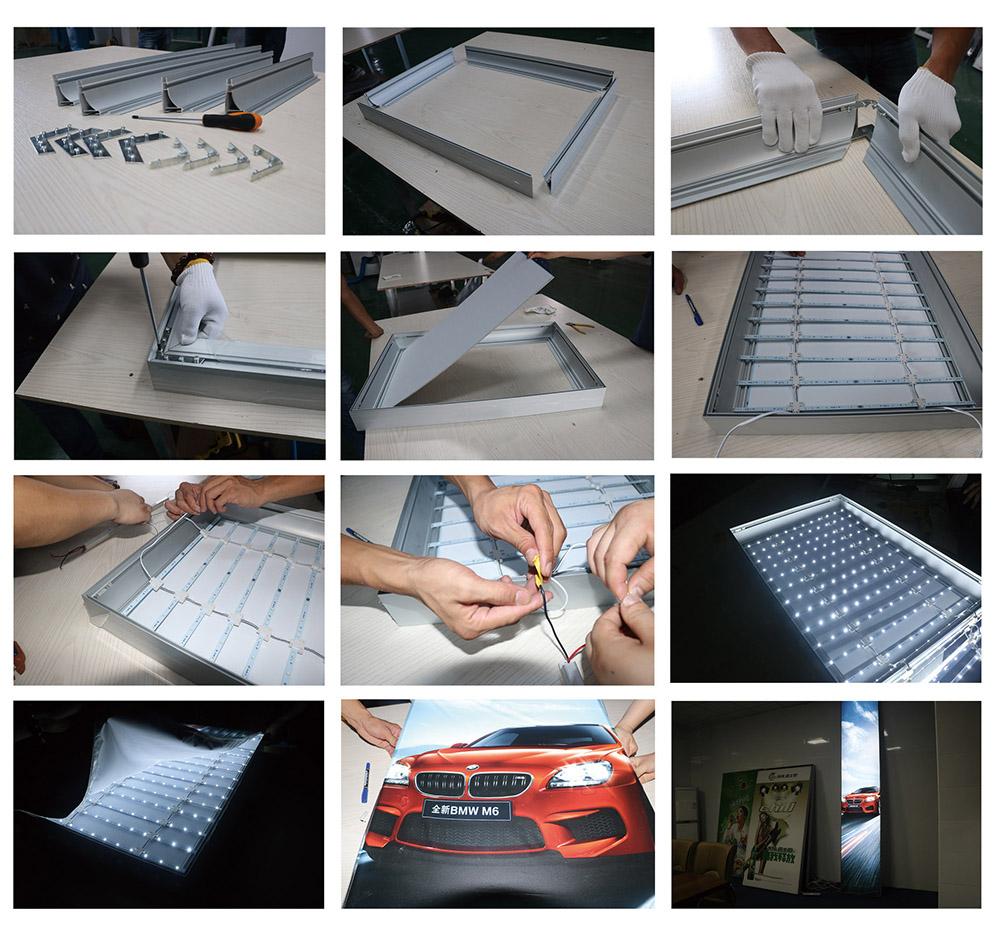

- Installation manual & 3D assembly diagram
FAQ
Q: Minimum order quantity?
A: 50 linear meters (custom cuts available)
Q: Lead time for custom sizes?
A: 7-10 working days (express service available)
Q: Compatible with LED lighting?
A: Yes – pre-drilled channels for LED strip integration
Q: Recyclable?
A: 100% recyclable aluminum with eco-packaging
Request Free Sample Kit
Contact our engineering team for:
- Material swatches
- CAD drawings
- Project-specific quotations
- Lighting integration guidance
